V-PULSE FILTER
V-PULSE FILTER

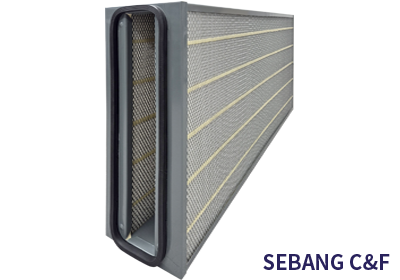

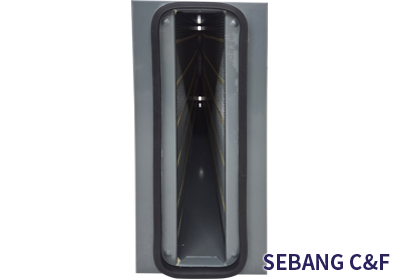

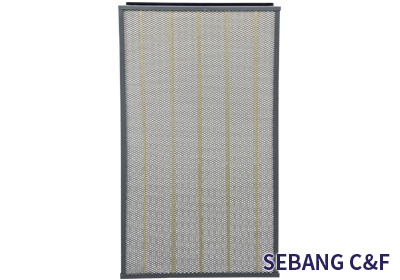

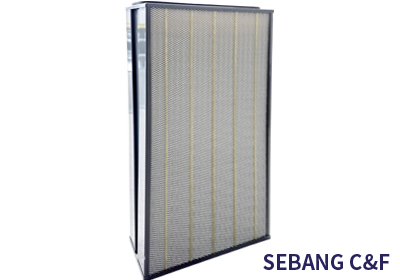

V-Pulse Filter

Product Overview

  • V-Pulse filters are optimized for self-cleaning (pulse) gas turbine air intake systems.
  • The optimized media structure minimizes pressure loss and enhances Dust Holding Capacity (DHC).
  • Long-life design reduces overall maintenance costs.
  • Ensures reliable protection for both diesel and gas engines.
  • Reduces corrosion effects in high-salinity environments.

  Filter Classes


Merv Rating Table(Air Filer Grade Table)

European Standards
U.S. Standards
EN779ASHRAE 52.2ASHRAE 52.1
Filter GradeMERVRange1Range2Range3
ArrestanceDust Spot
0.3 to 11 to 33 to 10
F915>85%>90%>95%>99%>95%

  Material and use condition


ClassificationMaterial
MediaFlame-retardant nanofibers
FrameGalvanized steel / Powder painted plate
SeparatorEven pleat-spacing with Hot melt
SealantPolyurethane
GasketSeamless molded-in-place urethane
Maximum Temperature65℃
Maximum Humidity100%RH

  Specification


ModelGrade
(≥95%@0.4㎛)
DimensionsAir FlowPressure Drop
HWDInitialFinal
V-PULSEF9610245 / 16612202200CMH220Pa1500Pa
