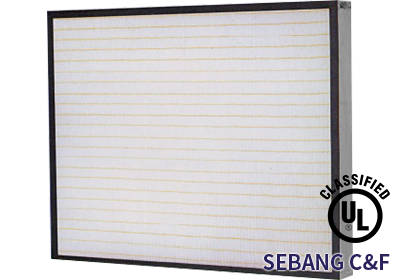

ULPA FILTER (Mini-Pleat Type)
Product Overview
- 99.9995% of particles down to 0.12 micron(μm)
- Lightweight and compact
- Mini-pleat design features maximum media cleaning potential
- Lowest possible pressure drop reduces operating costs
- Easy installation ; no corrugated separators
Applications
- only necessary for specialized applications such as microelectronics manufacturing or medical laboratories, removing particulates from cleanrooms, or filtering toxic surgical plumes emitted during electro-surgical operations
Filter Classes
EN1822 Classifications
| Filter Class | Particle Size for Testing | Global Values | Local Leak Values | |||
| Collection Efficiency (%) | Penetration (%) | Collection Efficiency (%) | Penetration (%) | Multiple of Global Efficiency (%) | ||
| U15 | MPPS | ≥99.9995 | ≤0.0005 | ≥99.9975 | ≤0.0025 | 5 |
| U16 | MPPS | ≥99.99995 | ≤0.00005 | ≥99.99975 | ≤0.00025 | 5 |
| U17 | MPPS | ≥99.999995 | ≤0.000005 | ≥99.9999 | ≤0.0001 | 20 |
| MPPS : Most Penetrating Particle Size | ||||||
ASNI/ASHRAE STANDARD 52.2
| MERV Rating | Air Filter will trap Air Particles size | ||
| .3 to 1.0 microns | 1.0 to 3.0 microns | 3 to 10 microns | |
| MERV 19 | 99.9997% | 99% or Better | 99% or Better |
| MERV 20 | 99.99997% | 99% or Better | 99% or Better |
ISO 29463 classifications
| Filter Class (Group) | Particle Size for Testing | Global Values | Local/Leak Values | |||
| Collection Efficiency (%) | Penetration (%) | Collection Efficiency (%) | Penetration (%) | Multiple of Global Efficiency (%) | ||
| ISO 55 U | MPPS | ≥99.9995 | ≤0.0005 | ≥99.9975 | ≤0.0025 | 5 |
| ISO 60 U | MPPS | ≥99.9999 | ≤0.0001 | ≥99.9995 | ≤0.0005 | 5 |
| ISO 65 U | MPPS | ≥99.99995 | ≤0.00005 | ≥99.99975 | ≤0.00025 | 5 |
| ISO 70 U | MPPS | ≥99.99999 | ≤0.00001 | ≥99.9999 | ≤0.0001 | 10 |
| ISO 75 U | MPPS | ≥99.999995 | ≤0.000005 | ≥99.9999 | ≤0.0001 | 20 |
IEST·RP·CC001
| Filter Type | Particle Size for Testing | Global Values | Local Leak Values | |||
| Collection Efficiency (%) | Penetration (%) | Collection Efficiency (%) | Penetration (%) | Multiple of Global Efficiency (%) | ||
| A | 0.3 | ≥99.97 | ≤0.03 | |||
| B | 0.3 | ≥99.97 | ≤0.03 | Two·Flow Leak Test | ||
| E | 0.3 | ≥99.97 | ≤0.03 | Two·Flow Leak Test | ||
| H | 0.1·0.2 or 0.2·0.3 | ≥99.97 | ≤0.03 | |||
| I | 0.1·0.2 or 0.2·0.3 | ≥99.97 | ≤0.03 | Two·Flow Leak Test | ||
| C | 0.3 | ≥99.99 | ≤0.01 | ≥99.99 | ≤0.01 | 1 |
| J | 0.1·0.2 or 0.2·0.3 | ≥99.99 | ≤0.01 | ≥99.99 | ≤0.01 | 1 |
| K | 0.1·0.2 or 0.2·0.3 | ≥99.995 | ≤0.005 | ≥99.992 | ≤0.008 | 1.6 |
| D | 0.3 | ≥99.999 | ≤0.001 | ≥99.99 | ≤0.005 | 5 |
| F | 0.1·0.2 or 0.2·0.3 | ≥99.9995 | ≤0.0005 | ≥99.995 | ≤0.0025 | 5 |
| G | 0.1·0.2 | ≥99.9999 | ≤0.0001 | ≥99.999 | ≤0.001 | 10 |
Material and use condition
| Classification | Material |
| Media | Glass Fiber |
| Frame | Aluminium / SUS |
| Separator | Hot-melt glue |
| Sealant | Polyurethane |
| Gasket | EPDM / Neoprene |
| Maximum Temperature | 70℃ |
| Maximum Humidity | 100%RH |
Specification
| Model | Dimensions | Air flow Volume (cmm) | Pressure Drop (mmAq) | ||
| H (Height) | W (Width) | T (Thickness) | |||
| Mini-Pleat Type | 572 | 1167 | 50 | 18 | 10.5 |
| 1167 | 1167 | 50 | 32 | 10.5 | |
| 572 | 1167 | 75 | 18 | 10.5 | |
| 1167 | 1167 | 75 | 32 | 10.5 | |
